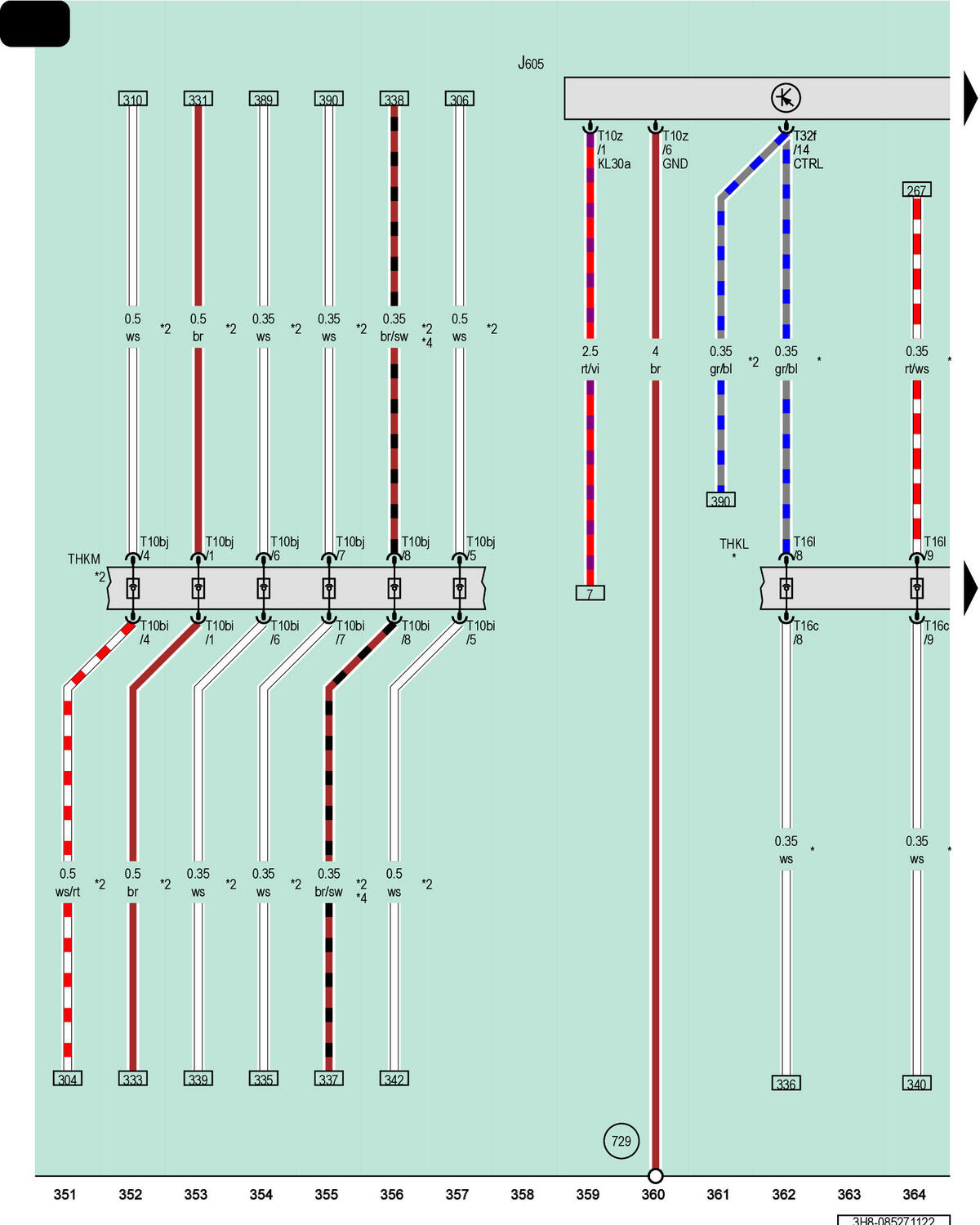

Rear Lid Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J605

Rear Lid Control Module

T10bi

10-Pin Connector, Black

T10bj

10-Pin Connector, Black

T10z

10-Pin Connector, Black

T16c

16-Pin Connector, Brown

T16l

16-Pin Connector, Brown

T32f

32-Pin Connector, Naturally Cloudy

THKL

Coupling Point on Rear Lid, Left

THKM

Coupling Point on Rear Lid, Center

729

Ground Connection on Left Rear Wheel Housing

*

Sedan

*2

Sportback

*3

Depending on Equipment

*4

For Vehicles with Sensor-Controlled Power Rear Lid Opening

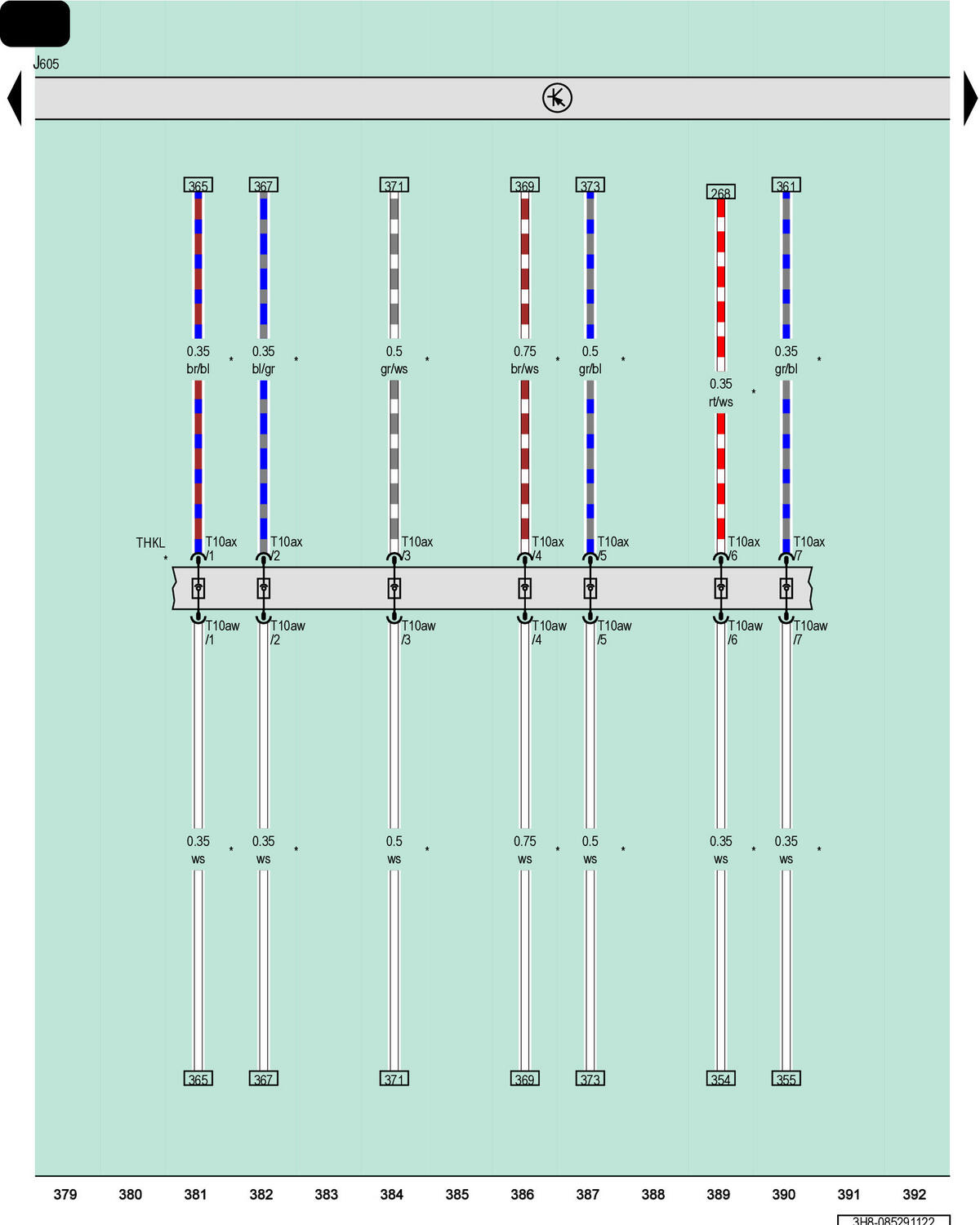

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J605

Rear Lid Control Module

T10aw

10-Pin Connector, Black

T10ax

10-Pin Connector, Black

THKL

Coupling Point on Rear Lid, Left

*

Sportback
