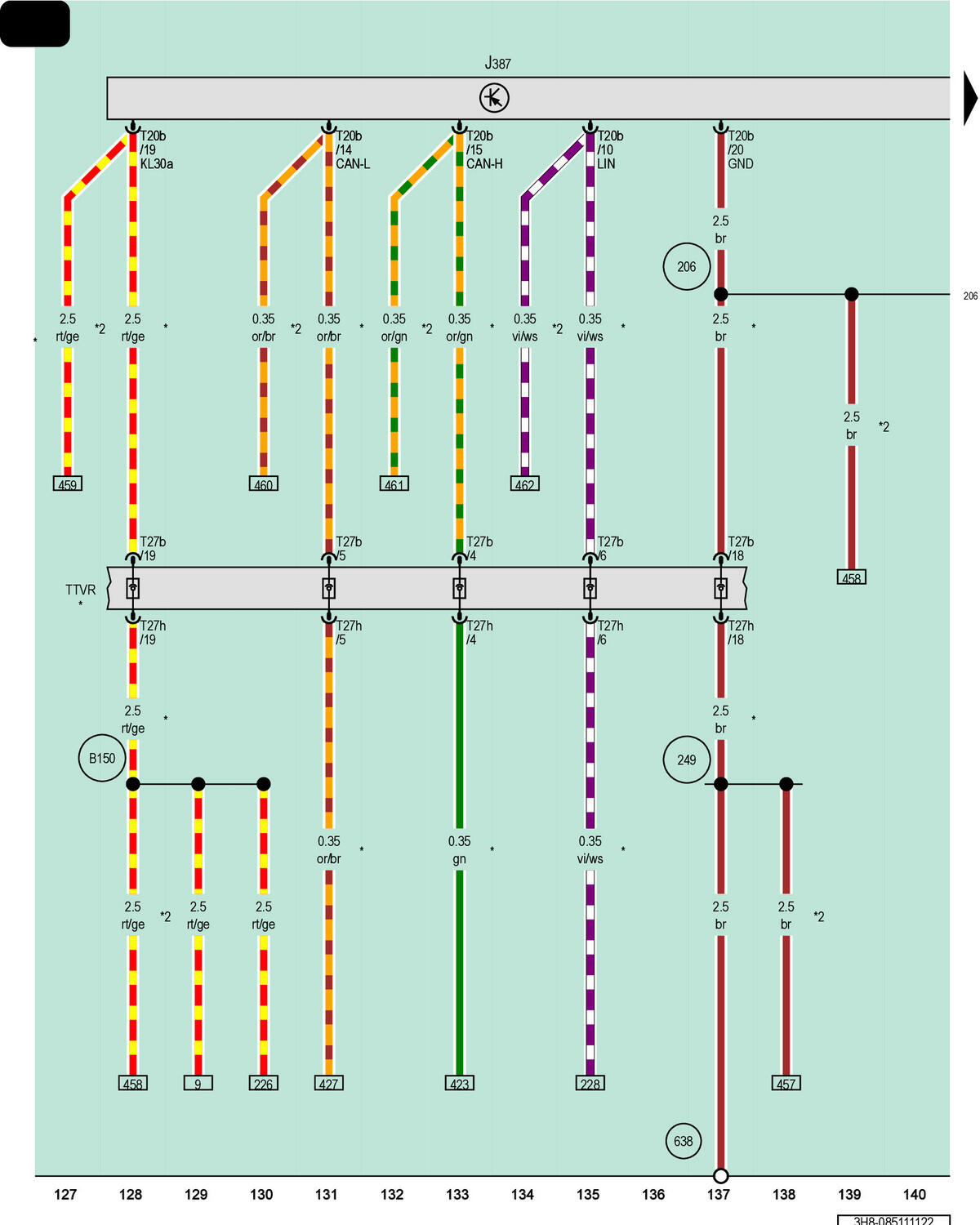

Front Passenger Door Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J387

Front Passenger Door Control Module

T20b

20-Pin Connector, Black

T27b

27-Pin Connector, Black

T27h

27-Pin Connector, Black

TTVR

Right Front Door Coupling Point

206

Ground Connection (in Front Passenger Door Wiring Harness)

249

Ground Connection 2 (in Interior Wiring Harness)

638

Ground Connection on Right A-Pillar

B150

Positive Connection 2 (30a) (in Interior Wiring Harness)

*

For Vehicles without Peripheral Camera

*2

For Vehicles with Peripheral Camera
