Engine, Securing To Engine And Transmission Holder

Special tools and workshop equipment required

CAUTION:

There is a risk of injury from the lifted engine/motor falling.

The possibility for parts of the body to be pinched or crushed increases.

- Secure the mounting hooks and pins on the lifting tackle with a spring retainer.

Requirement

Vehicles with Intermediate Plate

-- Remove the intermediate plate. Refer to Intermediate Plate, Removing and Installing .

Vehicles with 1.0L Gasoline Engine

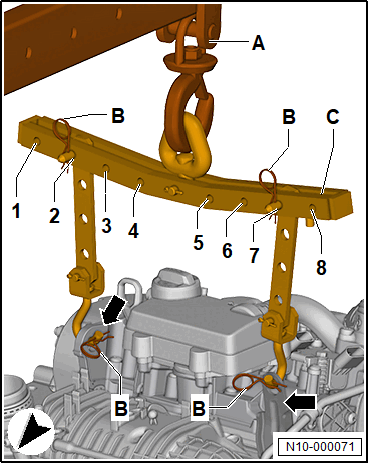

-- Balance the center of gravity of the engine, for this, insert rails with holes into the holes -2 and 7-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Engage the Engine Sling:2024B -C- onto the engine and onto the Shop Crane:VAS 6100 -A-.

-- Secure the mounting hooks and pins to the rails with holes using spring connectors -B-.

Vehicles with 1.5L Gasoline Engine

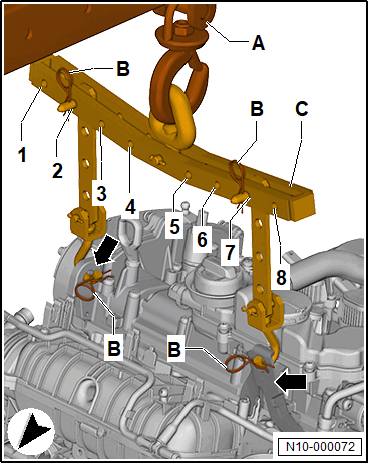

-- Balance the center of gravity of the engine, for this, insert rails with holes into the holes -2 and 7-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Engage the Engine Sling:2024B -C- onto the engine and onto the Shop Crane:VAS 6100 -A-.

-- Secure the mounting hooks and pins to the rails with holes using spring connectors -B-.

Vehicles with 2.0L Gasoline Engines

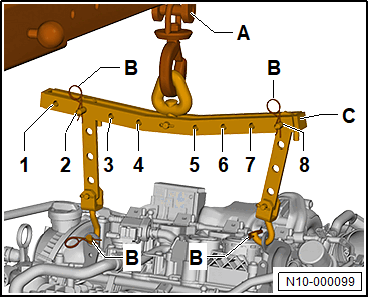

-- Balance the center of gravity of the engine, for this, insert rails with holes into the holes -2 and 8-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Engage the Engine Sling:2024B -C- onto the engine and onto the Shop Crane:VAS 6100 -A-.

-- Secure the mounting hooks and pins to the rails with holes using spring connectors -B-.

Vehicles with 2.0L Diesel Engine

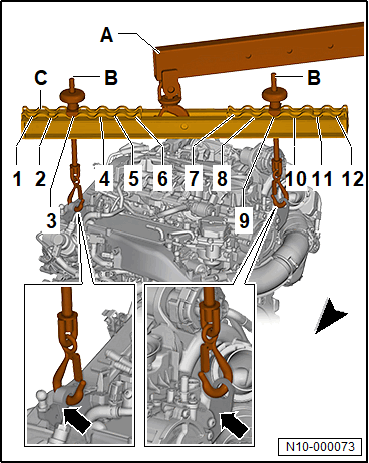

-- Insert the spindles of the Lifting Tackle:3033 -B- at the positions -3 and 9-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Engage the lifting tackle -C- at the Shop Crane:VAS 6100 -A-.

-- Secure the spindles -B- at the engine and align using the knurled nut.

Continuation for All Vehicles

-- Lift the engine from the engine bracket using the workshop crane.

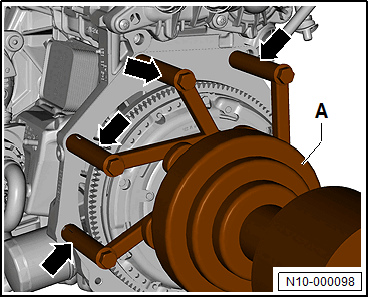

-- Remove the alignment sleeves.

-- Secure the engine with pins -arrows- to the Engine and Gearbox Bracket:VAS 6095A -A-.
