Engine And Transmission, Separating, Manual Transmission
Special tools and workshop equipment required
- Engine Support Bridge - Additional Hooks (2 pc.):10-222A/2
- Transmission Lift Hook:T40013
- Engine/Gearbox Jack - Engine Support:T10359A
- Shop Crane:VAS 6100
Requirement
- Engine/transmission assembly is removed and secured on the Engine/Gearbox Jack - Engine Support:T10359A .

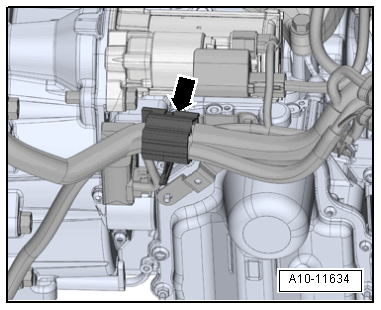

-- Free up the wire on the bracket -arrow-.
-- Remove the starter. Refer to STARTER, REMOVING AND INSTALLING .
-- Remove the left air duct pipe. Refer to Left Air Duct Pipe, Removing and Installing .

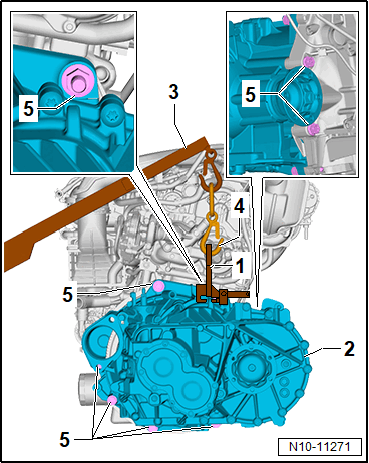

-- Secure the Transmission Lift Hook:T40013 -1- at the transmission -2-. Engage the Shop Crane:VAS 6100 -3- using the Engine Support Bridge - Additional Hooks (2 pc.):10-222A/2 -4- to the an transmission lift hook -1- and slightly pretension.
The help of a second technician is necessary for the following procedure.
-- Remove the bolts -5-.
