Transmission Mount, Removing And Installing: Removing

-- Remove the battery tray. Refer to BATTERY TRAY, REMOVING AND INSTALLING .

-- Refer to Engine, Supporting in Installation Position  .

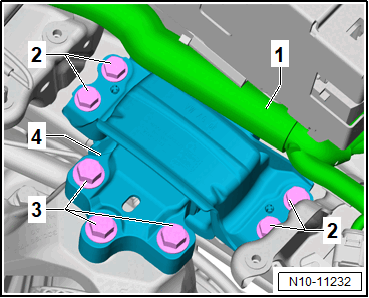

-- Free up the wire -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Requirement

• When the transmission mount -4- is loosened or removed, the engine mount must be tightly secured.

-- Remove the bolts -2-.

Tip

Depending on the equipment/version, there could be two or three bolts -3- installed.

-- Remove the bolts -3- and remove the transmission mount -4-.
