Pendulum Support, Removing And Installing: Removing

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

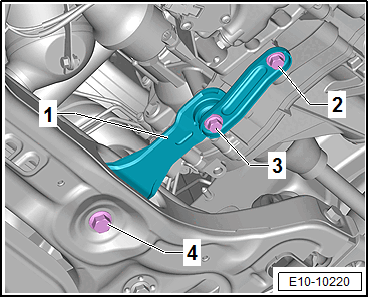

-- Remove the bolts -2 through 4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the pendulum support -1-.
