Engine Mount, Removing And Installing: Removing

-- Loosen the coolant expansion tank and move to the side. Refer to Coolant Expansion Tank, Removing and Installing .

-- Refer to Engine, Supporting in Installation Position  .

Vehicles with Ground Cable

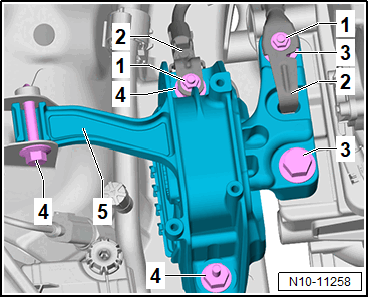

-- Remove the nuts -1- and the ground cable -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation for All Vehicles

Requirement

• When the engine mount -1- is loosened or removed, the transmission mount must be tightly secured.

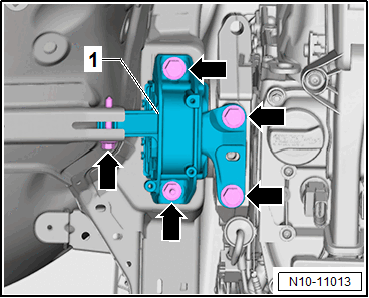

-- Remove the bolts -arrows- and the engine mount -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
