Heater And A/C Unit Identification, VALEO
Determine the heater and A/C unit manufacturer
-- Remove the left footwell center console trim panel. Refer to FRONT FOOTWELL CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .

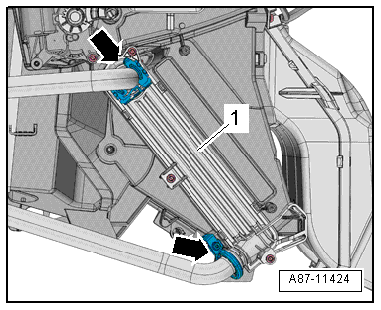

If the coolant pipes are routed as shown, a heater and A/C unit from Valeo is installed.
NOTE:
Interchanging components made by different manufacturers is not permitted.
Ensure the correct allocation of components when replacing. Refer to the appropriate Parts Information.
