Repair Information: CIRCLIPS

• Do not stretch the circlips.
• Replace damaged or stretched circlips.
• The circlips must rest at the bottom of the groove.

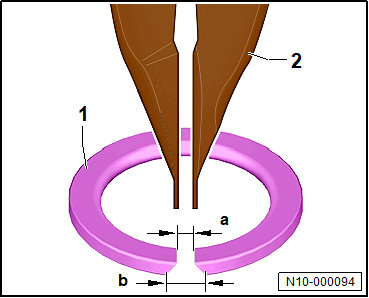

Installation position for circlips -1- with beveled endings:

• Grasp the side with the tighter opening -a- using the pliers -2-.

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• The side with the wider opening -b- faces toward the direction of the component to be secured.
