Noise Insulation

Noise insulation or acoustic insulation reduces the transfer of driving noises from hollow cavities into the vehicle interior and their most important function is noise insulation for the vehicle interior.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

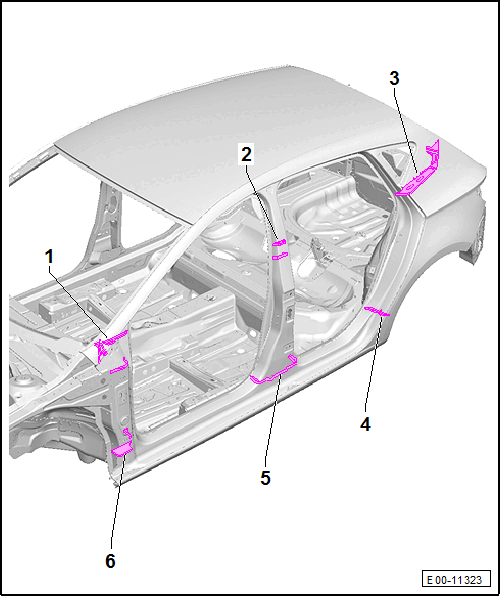

1. Noise Insulation in Upper A-Pillar
2. Noise Insulation in Upper B-Pillar
3. Noise Insulation in Upper C-Pillar
4. Noise Insulation in Lower C-Pillar
5. Noise Insulation in Lower B-Pillar
6. Noise Insulation in Lower A-Pillar
