TPMS Reminder Reset - Procedure 03
NOTE:
Whenever a wheel is changed or replaced, or whenever vehicle has been loaded, the TPM system needs to be reset.
Tire Pressure Monitor System Reset
CAUTION:
DO NOT reset TPM system until all problems are fixed and tire pressure in all tires (including spare tire) has been adjusted. If reset procedure is done when tire pressures are incorrect, TPM system will not work properly and may not set an alert when a tire pressure is low or high.
NOTE:
Whenever a wheel is changed or replaced, or whenever vehicle has been loaded, the TPM system needs to be reset.
NOTE:
In the following procedure, tires must be cold.
- Set the tire pressure of all wheels to pressure specified on the tire information label (located on open edge of driver's door).
- With vehicle stopped and parking brake applied, turn ignition switch to ON position.

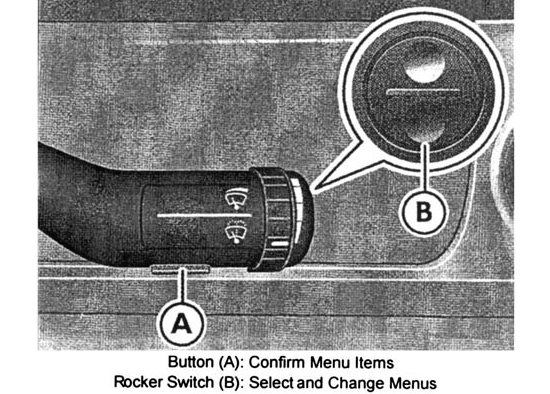

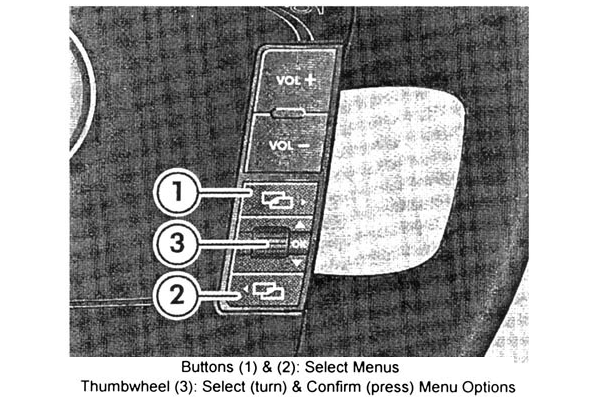

- Press appropriate button to show menu selection in instrument cluster display. See Fig 1 and Fig 2 .
- Select menu item "TIRE PRESSURE" using thumbwheel (or rocker switch).
- When menu item "TIRE PRESSURE" is selected in display, confirm menu item by pressing thumbwheel.
- In "TIRE PRESSURE MONITOR" sub-menu, turn thumbwheel until position "STORE" is displayed. Save current inflation pressure by pressing thumbwheel.
- Drive vehicle continuously for approximately 8-10 minutes.
