Using Buttons in Instrument Cluster (Basic Message Display)

1. Ensure the ignition is switched off.
   NOTE: If resetting the Inspection Service Reminder, turn on emergency flashers. If resetting the Oil Change Reminder, go to next step.
2. Press and hold the 0.0 (trip reset) button (3). See Fig 1, Fig 2, or Fig 3.
3. Switch ignition on. Release the 0.0 button. Press the HOUR and MINUTE button (clock reset button - 1) one time, quickly.
4. The Service Interval Display is now in the Reset mode.
5. After a brief period, the display switches back to the normal display.
6. Turn off ignition and remove key from lock. Wait at least 10 seconds.
7. Insert key and start engine. The service interval is now reset. Confirm "wrench" indicator light is not illuminated.

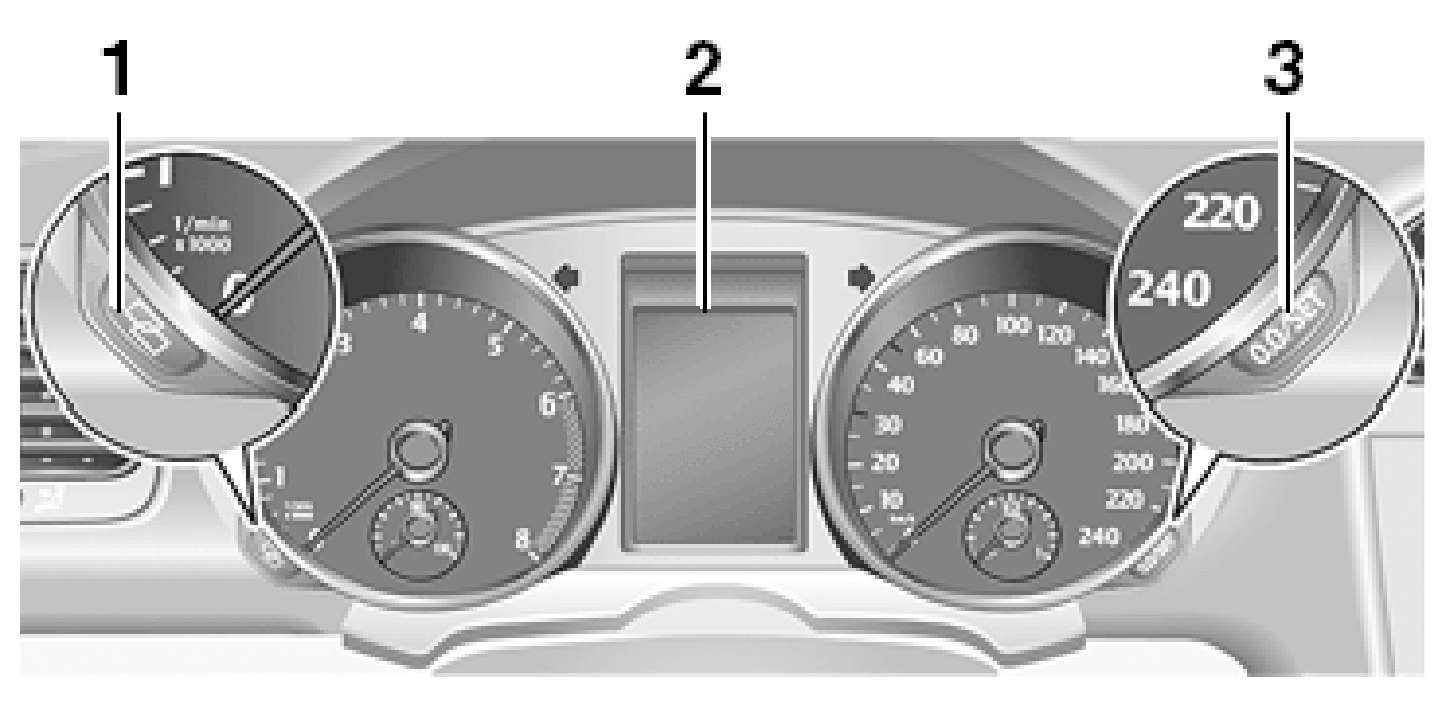

Fig 1: Identifying Instrument Cluster Buttons (Typical - All Models Except 2012 Beetle, 2004-08 Golf Sedan, 2004 R32)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

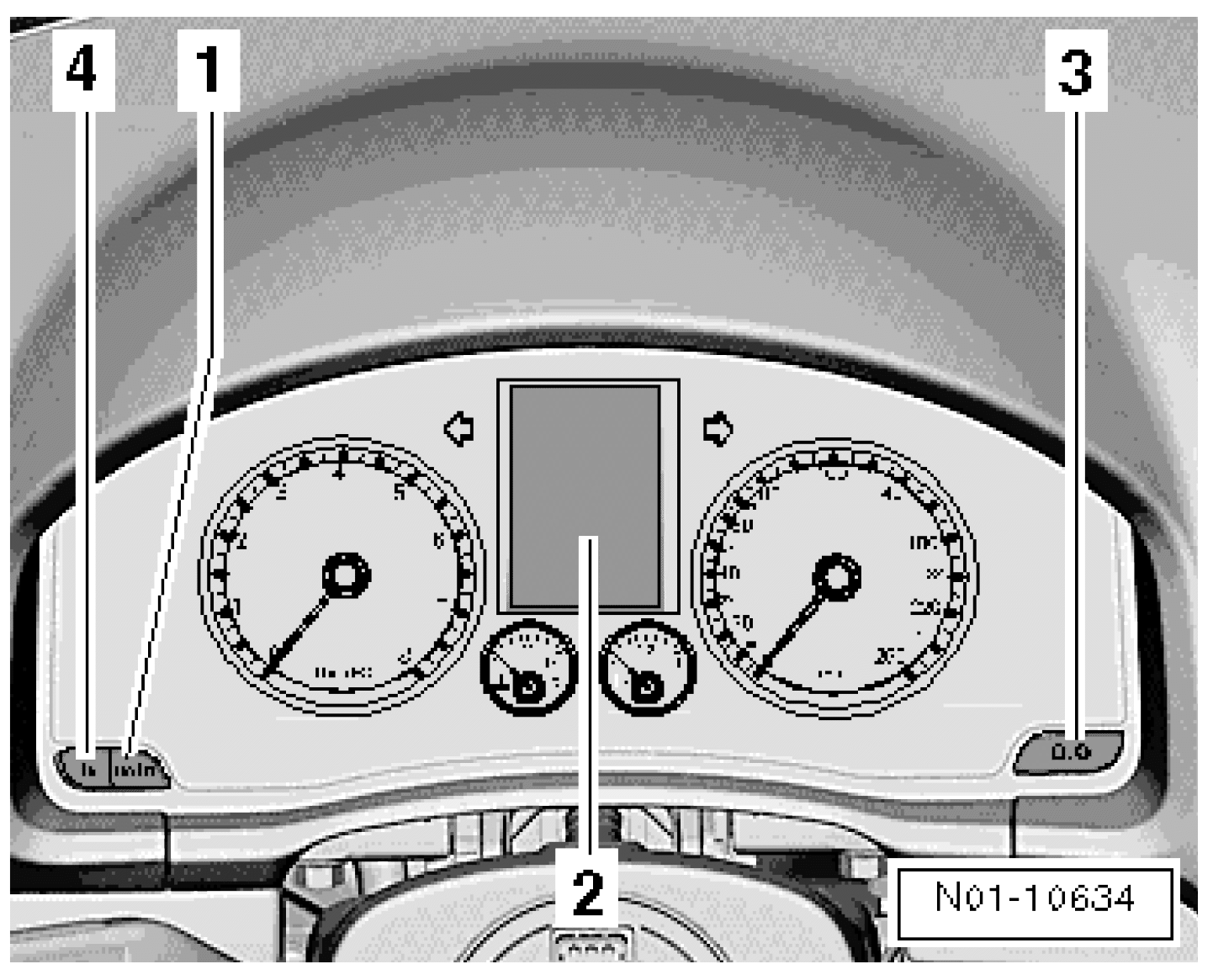

Fig 2: Identifying Instrument Cluster Buttons (2004-08 Golf Sedan & 2004 R32)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

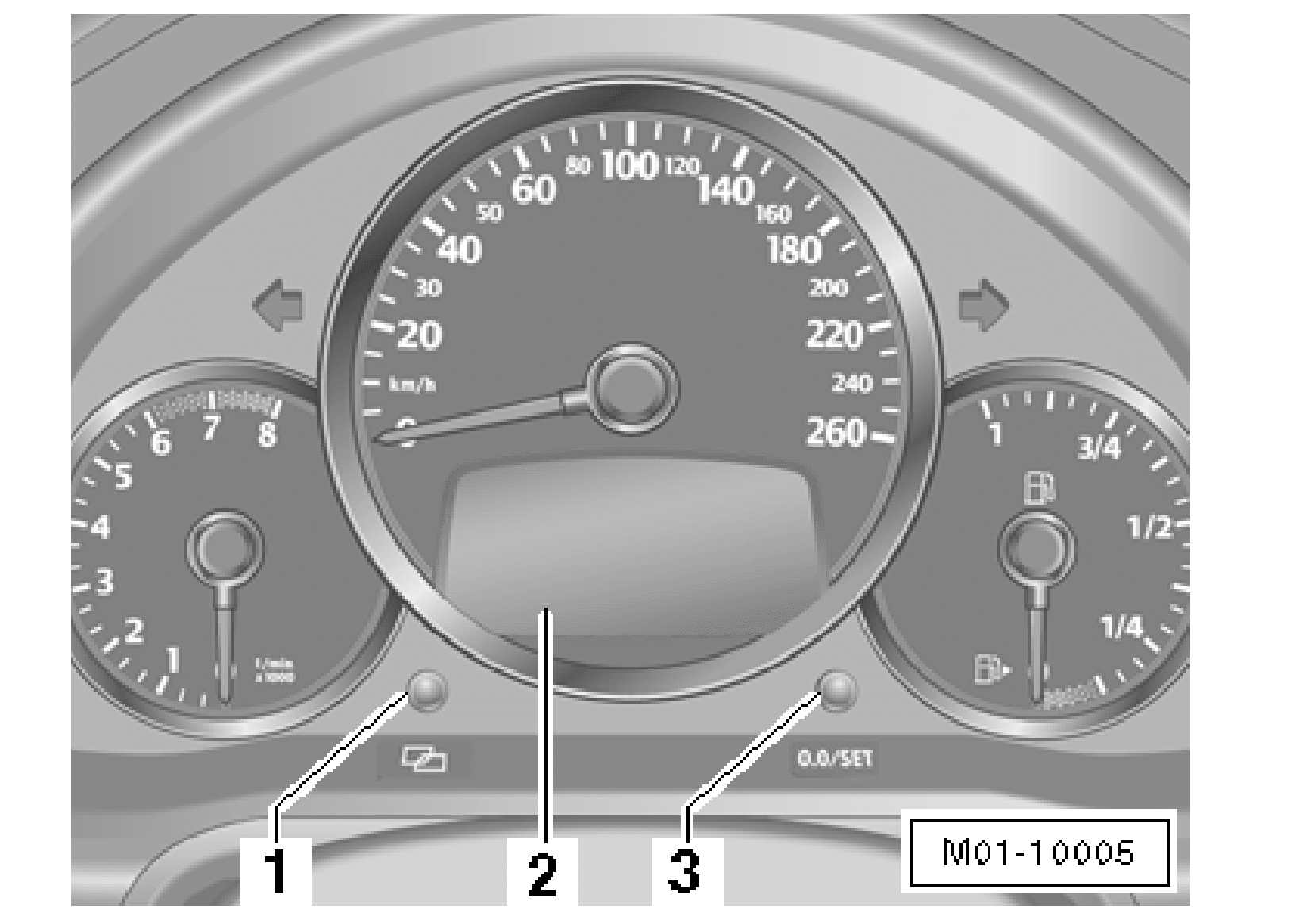

Fig 3: Identifying Instrument Cluster Buttons (2012 Beetle)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
