Spring, Removing And Installing: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Tensioning Strap:T10038

Fig 1: Identifying Tensioning Strap T10038
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench, 40-200Nm:VAG1332A

Fig 2: Identifying Torque Wrench 1332
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench:VAG1410

Fig 3: Identifying Torque Wrench 1410 VAG1410
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

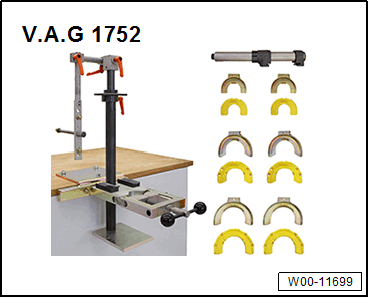

Spring Compressor Kit:VAG1752

Fig 4: Spring Compressor Kit
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine and Gearbox Jack:VAS6931 or Engine and Gearbox Jack:VAG1383A

Fig 5: Engine and Gearbox Jack VAS6931 or VAG1383A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
