Overview - Rear Level Control System Sensor

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The level control system sensor is only available as a replacement part together with the coupling rod and upper and lower retaining plates.

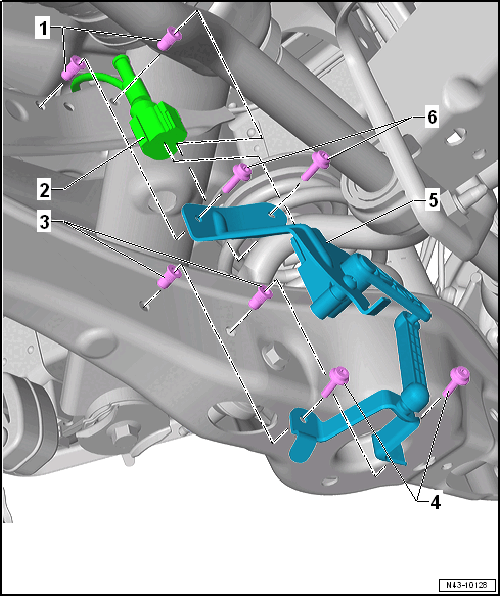

Fig 1: Exploded View Of Rear Level Control System Sensor, Multi-Link Suspension, AWD

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Pop Rivet Nut
Connector
Pop Rivet Nut
Bolt
- 5 Nm
Left Rear Level Control System Sensor -G76-
- Complete with attachments
- The lever must face toward outside of vehicle
- Removing and installing. Refer to LEFT/RIGHT REAR LEVEL CONTROL SYSTEM SENSOR -G76- / -G77-, REMOVING AND INSTALLING .
- Perform the basic setting for the wheel damping electronics. Use the Vehicle Diagnostic Tester.
- Perform a basic setting using the Vehicle Diagnostic Tester.
Bolt
- 5 Nm
