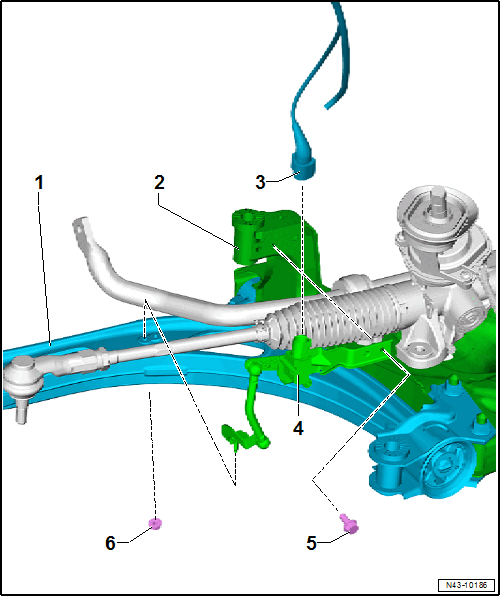

Overview - Front Level Control System Sensor
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A replacement Front Left and Right Level Control System Sensor -G78/G289- only comes complete with the coupling rod and the upper and lower retaining plate.
- Control Arm
- Subframe
- Connector
- Left Front Level Control System Sensor -G78- and Right Front Level Control Sensor -G289-
- Complete with attachments
- The lever must face toward outside of vehicle
- Removing and installing. Refer to LEFT/RIGHT FRONT LEVEL CONTROL SYSTEM SENSOR -G78- / -G289-, REMOVING AND INSTALLING .
- Perform a basic setting using the Vehicle Diagnostic Tester.
- Bolt
- 8 Nm
- Nut
- 8 Nm
- Replace after removing.
