Left/Right Front Level Control System Sensor -G78- / -G289-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the connector -1- from the Left Front Level Control System Sensor -G78- or Right Front Level Control Sensor -G289-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

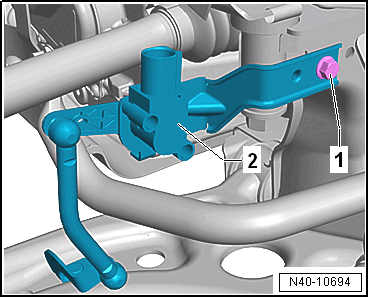

-- Remove the nut -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket -2- for the Left Front Level Control System Sensor -G78- or Right Front Level Control Sensor -G289- from the control arm -3-.

-- Remove the bolt -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Left Front Level Control System Sensor -G78- or Right Front Level Control Sensor -G289-.
