Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING, VERSION 2: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Bring wheels in the straight position.

-- Pull the lever on the side of the steering column downward.

-- Push the steering column as far down as possible and remove it.

-- Push the lever on the side of the steering column upward again.

-- Remove the steering column switch module. Refer to STEERING COLUMN SWITCH MODULE, REMOVING AND INSTALLING .

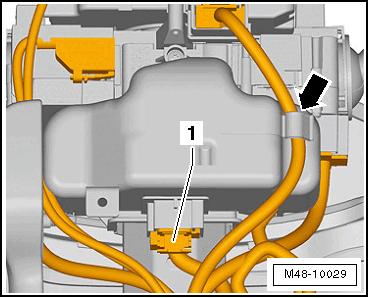

-- Disconnect the connector -1-.

Fig 1: Identifying "Keyless Access" Keyless Locking And Starting System Connector

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the wiring harness -arrow-.

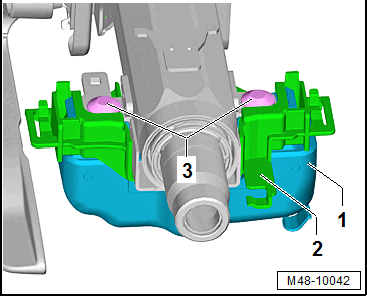

-- Drill out the shear bolts -3- using a hand drill and an 8.5 mm drill bit.

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Wear protective eyewear while drilling.

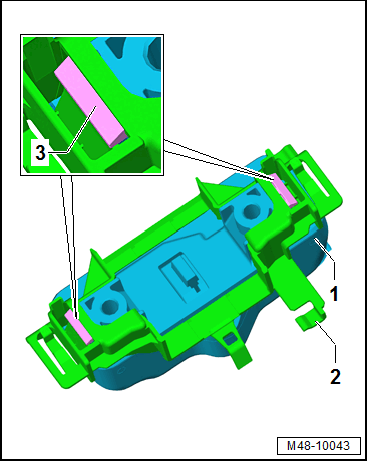

-- Remove the Electronic Steering Column Lock Control Module -J764- -1- with the mounting plate -2-.

-- Release the catch -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the mounting plate -2- from the Electronic Steering Column Lock Control Module -J764- -1-.
