Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING, VERSION 2: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal.

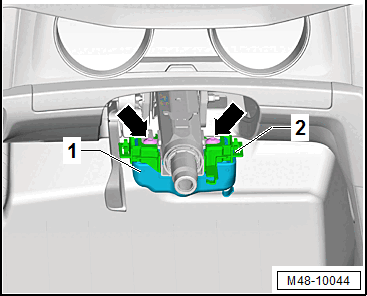

-- Secure the Electronic Steering Column Lock Control Module - J764- -1- to the mounting plate -2- with new shear bolts -arrows-.
-- Tighten the shear bolts -arrows- evenly until the bolt heads shear off.
-- If the Electronic Steering Column Lock Control Module - J764- was replaced, it must be adapted by selecting the "Replace" function on the appropriate Electronic Parts Information in the "Guided Function".
-- Perform the Steering Angle Sensor -G85- basic setting using the Vehicle Diagnostic Tester.
