Telephone Microphone -R38-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.

-- Remove the Front Interior Lamp -WX1-. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .

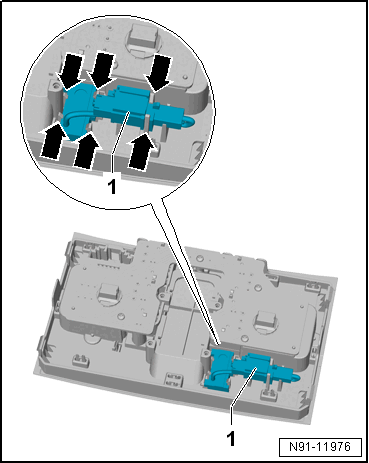

-- Release the hooks -arrows-.

GWWN91-11976Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Telephone Microphone -R38- -1- from the Front Interior Lamp -WX1-.
