Storage Compartment with Cell Phone Interface -R265-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.

-- Remove the liner mat from the front center console storage compartment.

CAUTION:

Risk of damaging the component surfaces.

When positioning a prying tool, put commercially available adhesive tape over the component in the visible area.

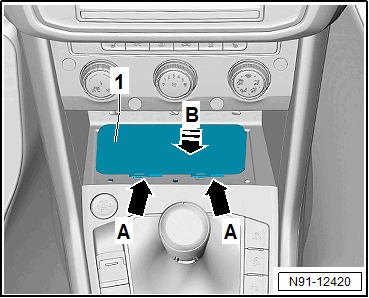

-- Unclip the catches -A arrows- on the Storage Compartment with Cell Phone Interface -R265- -1- upward from the front center console storage compartment.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Storage Compartment with Cell Phone Interface -R265- -1- in the -direction of arrow B- from the front center console storage compartment while paying attention to the connected lines.

-- Release and disconnect the connectors on the Storage Compartment with Cell Phone Interface -R265- -1-.
