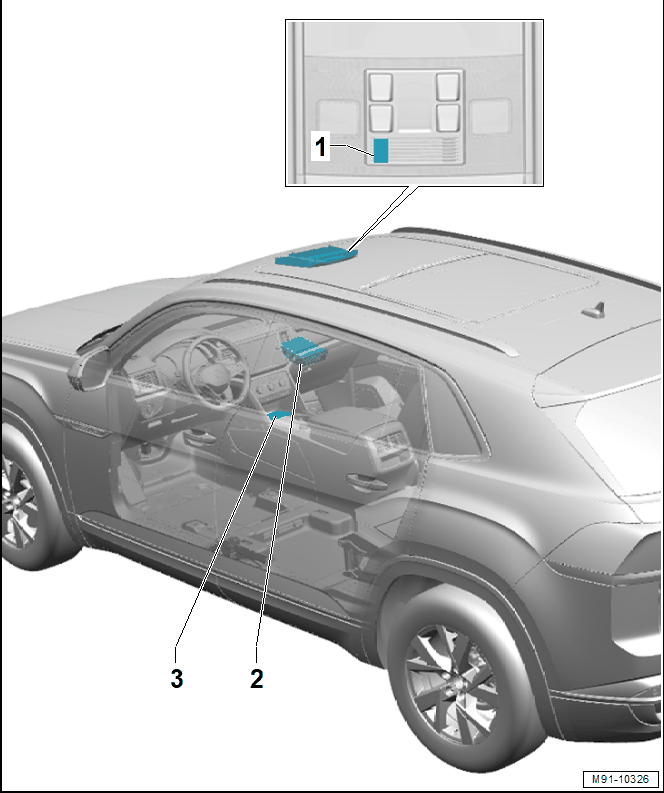

Component Location Overview - Telephone System
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Telephone Microphone -R38-
- In the Front Interior Lamp -WX1-
- Removing and Installing. Refer to Telephone Microphone -R38-, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- Only on Composition Media, Discover Media in glove compartment
- For Composition Color in connection with the Front Information Display Control Head -J685- in the center instrument panel
- Removing and installing Composition Color. Refer to RADIO, REMOVING AND INSTALLING, COMPOSITION COLOR .
- Removing and installing Composition Media, Discover Media. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Storage Compartment with Cell Phone Interface -R265-
- In the front center console storage compartment
- Removing and Installing. Refer to Storage Compartment with Cell Phone Interface -R265-, REMOVING AND INSTALLING .
