Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.

-- Remove the left front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

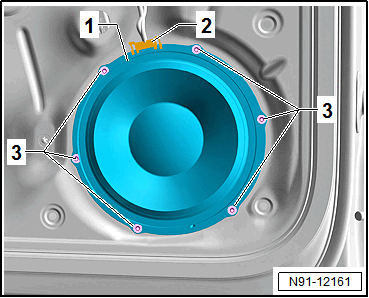

-- Release and disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the pop rivets -3- with the Drill - 1100 Watt:VAS 6267A and a suitable spiral bit.

-- Remove the Left Front Bass Speaker -R21- -1- from the inner door panel.

CAUTION:

Always remove any shavings resulting from the drilling from the door, otherwise they may cause corrosion damage later.

If the paint on the door frame gets damaged during drilling, touch-up immediately.
