Digital Sound System Control Module -J525- BRACKET, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

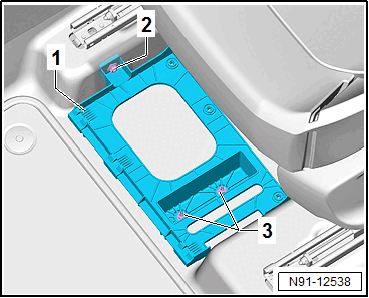

-- Remove the Digital Sound System Control Module -J525- Refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING .

-- If necessary, fold up the carpet and floor insulation at the center tunnel and floor panel.

-- Remove the bolt -2- on the center tunnel.

-- Remove the nuts -3- on the floor.

-- Remove the bracket for the Digital Sound System Control Module -J525- -1-.
