Center Speaker, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.

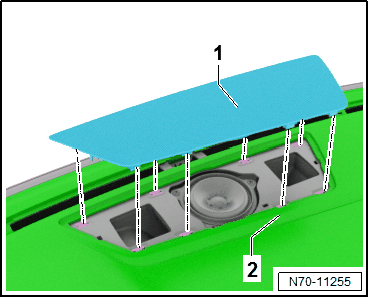

-- Carefully unclip the speaker trim -1- with the Trim Removal Wedge:3409 from the mounts in the instrument panel -2-.

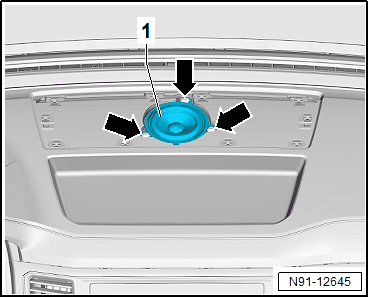

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the Center Speaker -R208- -1- upward out of the instrument panel until the connector is accessible.

-- Release and disconnect the connector from the Center Speaker -R208- -1-.

-- Remove the Center Speaker -R208- -1-.
