Telematics Button Module -E734-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the Front Interior Lamp -WX1-. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
-- Remove the headliner storage compartment. Refer to HEADLINER STORAGE COMPARTMENT, REMOVING AND INSTALLING .

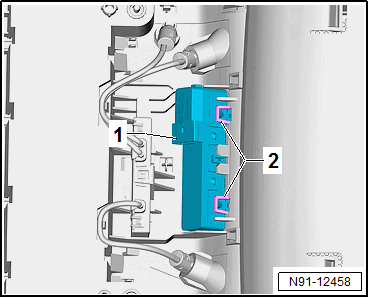

-- Carefully release the mounting tabs -2- on both sides on the headliner compartment using a small screwdriver.
-- At the same time remove the Telematics Button Module -E734- -1- upward from the headliner compartment.
