Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.

Vehicles with Composition Color Infotainment system

-- Remove the Information Electronics Control Module 1 -J794-. Refer to RADIO, REMOVING AND INSTALLING, COMPOSITION COLOR .

Vehicles with Composition Media, Discover Media Infotainment system

-- Remove the Front Information Display Control Head -J685-. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .

Continuation for all vehicles

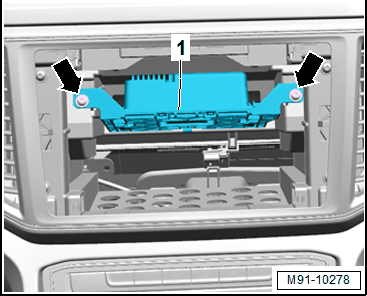

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the bracket with the Control Module for Emergency Call Module and Communication Unit -J949- -1- toward the rear out of the instrument panel until the connectors are accessible.

-- Release and disconnect the connectors from the Control Module for Emergency Call Module and Communication Unit -J949- -1-.

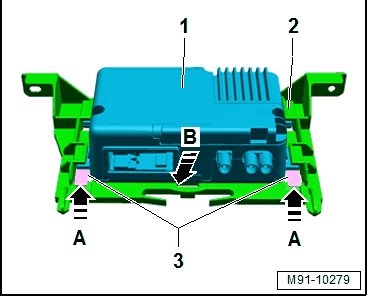

-- Release the catches -3- in the -direction of arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the Control Module for Emergency Call Module and Communication Unit -J949- -1- in the -direction of arrow B- out of the bracket -2-.
