Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
Installation is performed in the reverse order of removal, noting the following.

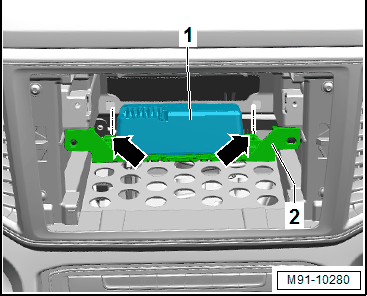

-- The Control Module for Emergency Call Module and Communication Unit -J949- -1- must engage audibly in the bracket -2-.
-- Pay attention that the tabs -arrows- are seated correctly on the bracket -2- in the instrument panel mount.
-- If the Control Module for Emergency Call Module and Communication Unit -J949- is being replaced, then pay attention to the further procedure for replacing the control modules. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REPLACING .
