Overview - Infotainment System, Composition Media And Discover Media Equipment Levels
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
Information Electronics Control Module 1J794 / Front Information Display Control HeadJ685

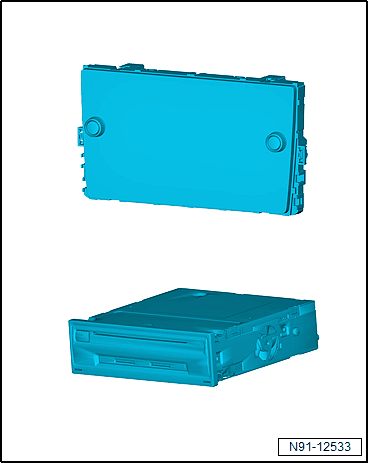

Fig 1: Information Electronics Control Module 1 -J794- / Front Information Display Control Head -J685-
Composition Media and Discover Media Infotainment system characteristics
- 8 inch display with touch screen
- Integrated CD drive
- Integrated SD card reader with one SD card slot (only Composition Media)/two SD card slots (only Discover Media)
- Integrated Bluetooth hands-free calling
- Integrated navigation system with GPS satellite receiver (only Discover Media)
- Integrated SDARS tuner for digital radio reception (optional)
- CVBS input for rearview camera/peripheral camera (optional)
- Input for USB port/AUX IN jack to connect external multimedia devices (optional)
CAUTION:
- Familiarity with the function and operation of the Infotainment system is needed if there are complaints.
- Refer to the appropriate Service Information for additional information.
- The connection to other vehicle systems is established through the CAN bus (Infotainment) and the Data Bus on Board Diagnostic Interface -J533-.
- Fault Finding is performed using the Vehicle Diagnostic Tester.
