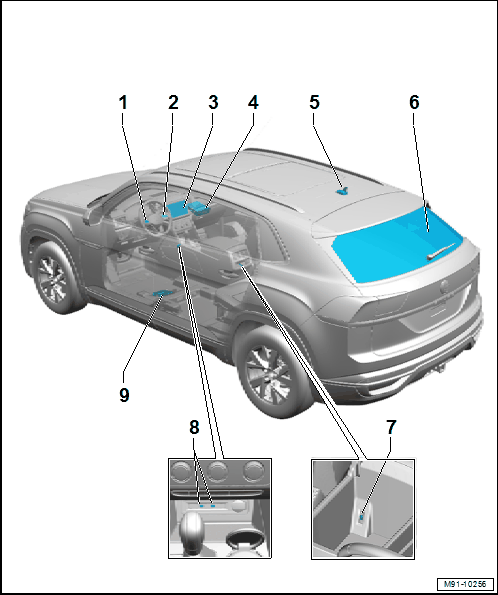

Component Location Overview - Infotainment System
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Left Multifunction Buttons on Steering Wheel -E440-
- Removing and Installing. Refer to Right Multifunction Buttons on Steering Wheel -E441- /Left Multifunction Buttons on Steering Wheel -E440-, REMOVING AND INSTALLING .
- Right Multifunction Buttons on Steering Wheel -E441-
- Removing and Installing. Refer to Right Multifunction Buttons on Steering Wheel -E441- /Left Multifunction Buttons on Steering Wheel -E440-, REMOVING AND INSTALLING .
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Composition Color: in connection with the Information Electronics Control Module 1 -J794-
- Composition Media, Discover Media: individual display
- Removing and installing Composition Color. Refer to RADIO, REMOVING AND INSTALLING .
- Removing and installing Composition Media, Discover Media. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
- Front Information Display Control Head -J685- Knobs, Replacing. Refer to Front Information Display Control Head -J685- KNOBS, REPLACING .
- Information Electronics Control Module 1 -J794- /CD Player -R89-
- In the glove compartment
- Composition Color: CD Player -R89-
- Composition Media, Discover Media: Information Electronics Control Module 1 -J794-
- CD Player -R89-, Removing and Installing. Refer to CD Player -R89-, REMOVING AND INSTALLING .
- Removing and Installing, Information Electronics Control Module 1 -J794-. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Roof Antenna -RX5-
- Depending on vehicle equipment with GPS Antenna -R50- /Satellite Tuner Antenna -R172-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Rear Window Antennas
- Rear Center Console Storage Compartment USB Connection
- Depending on vehicle equipment in rear center console storage compartment
- Removing and Installing. Refer to EXTERNAL MULTIMEDIA DEVICE CONNECTION, REMOVING AND INSTALLING .
- Front Center Console Storage Compartment USB Connection
- Depending on vehicle equipment in front center console storage compartment
- Removing and Installing. Refer to EXTERNAL MULTIMEDIA DEVICE CONNECTION, REMOVING AND INSTALLING .
- Digital Sound System Control Module -J525-
- Depending on vehicle equipment under the left front seat
- Removing and Installing. Refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING .
