USB Distributor -R293-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bracket for the center console on the selector lever. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .

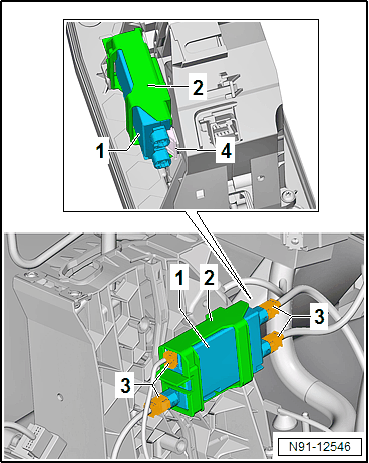

-- Release and disconnect the connectors -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the retaining tab -4- from the bracket -2-.

-- Remove the USB Distributor -R293- -1- forward out of the bracket -2-.

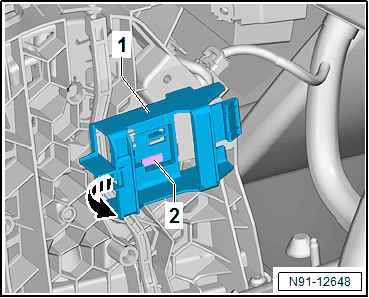

-- Release the retaining tab -2- from the bracket -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket -1- in the -direction of the arrow- from the selector mechanism.
