Component Location Overview - Antenna Systems
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

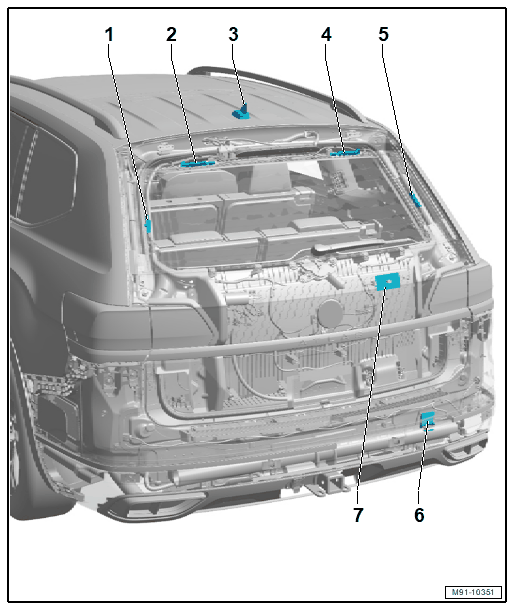

- FM Frequency Filter in Positive Wire -R179-
- On the left window frame of the rear lid
- FM plus trap circuit
- Prevents the antenna signals from shorting to the ground
- Removing and Installing. Refer to FM FREQUENCY FILTER IN NEGATIVE WIRE R178 -- /FM FREQUENCY FILTER IN POSITIVE WIRE R179 --, REMOVING AND INSTALLING .
- Left Antenna Module -R108-
- On the upper left of rear lid
- Related to the Radio Antenna 2 -R93-
- Impedance converter FM2
- Removing and Installing. Refer to ANTENNA MODULE, REMOVING AND INSTALLING .
- Roof Antenna -RX5-
- Depending on the vehicle equipment with:
- GPS Antenna -R50-
- Satellite Tuner Antenna -R172-
- GSM Antenna -R205-
- Emergency Call Module Antenna -R263-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Depending on the vehicle equipment with:
- Right Antenna Module -R109-
- On the upper right of the rear lid
- Related to the Antenna -R11-
- Impedance converter AM/FM1
- Removing and Installing. Refer to ANTENNA MODULE, REMOVING AND INSTALLING .
- FM Frequency Filter in Negative Wire -R178-
- On the right window frame of the rear lid
- FM minus trap circuit
- Prevents the antenna signals from shorting to the ground
- Removing and Installing. Refer to FM FREQUENCY FILTER IN NEGATIVE WIRE R178 -- /FM FREQUENCY FILTER IN POSITIVE WIRE R179 --, REMOVING AND INSTALLING .
- LTE Antenna 2 -R306-
- only for vehicles with emergency call module.
- Removing and Installing. Refer to LTE Antenna 2 -R306-, REMOVING AND INSTALLING .
- AM Frequency Filter -R177-
- On the lower right of the rear lid
- Prevents the antenna signals from shorting to the ground
- Removing and Installing. Refer to AM Frequency Filter -R177-, REMOVING AND INSTALLING .
