Antenna Module, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.

-- Remove the rear lid upper trim panel. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .

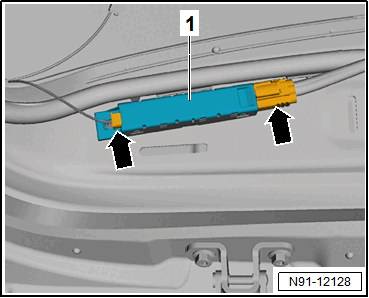

-- Release and disconnect the connectors -arrows- from the Left Antenna Module -R108- -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

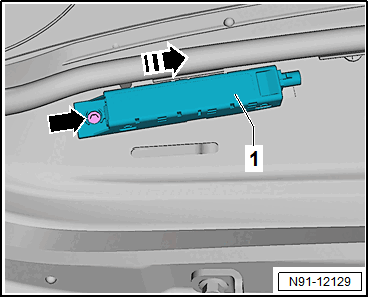

-- Loosen the bolt -arrow- on the Left Antenna Module -R108- -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -arrow- with the metal clip and the Left Antenna Module - R108- -1- slightly out of the rear lid.

-- Push the Left Antenna Module -R108- -1- in the -direction of the arrow- and remove.
