Suspension Strut, Removing And Installing: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

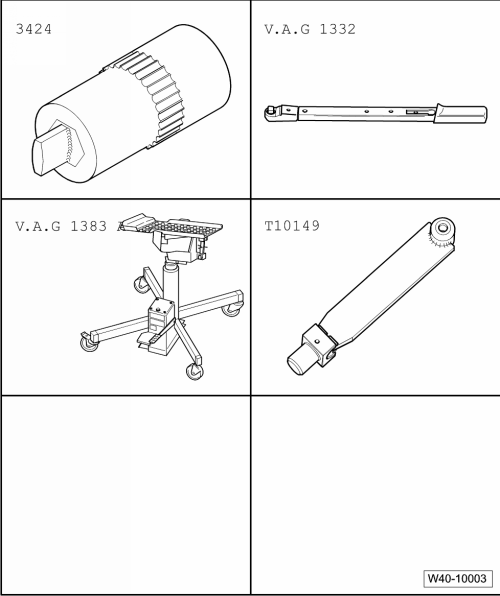

Fig 1: Identifying Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Torque Wrench, 40-200Nm:VAG1332A
Spreader Tool:3424
Engine and Gearbox Jack:VAS6931
Engine/Gearbox Jack Adapter - Wheel Hub Support:T10149

Special tools and workshop equipment required

Drive Shaft Remover:T10520

Fig 2: Identifying Intake Manifold Release Tool T10520
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
