Coupling Rod, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Raise the vehicle.

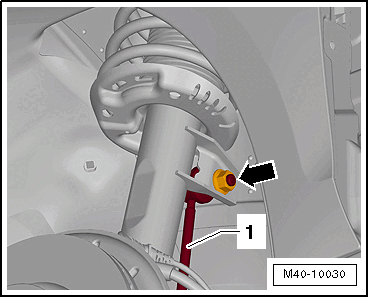

-- Remove the nut -arrow- and the coupling rod -1- from the suspension strut.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
-- Remove the hex nut -1- from the coupling rod -3-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Remove the coupling rod -3- from the stabilizer bar -2-.
