Window Guide, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the inner window shaft strip. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

-- Remove the outer window shaft strip. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

-- Remove the B-pillar trim. Refer to DOOR B-PILLAR TRIM, REMOVING AND INSTALLING .

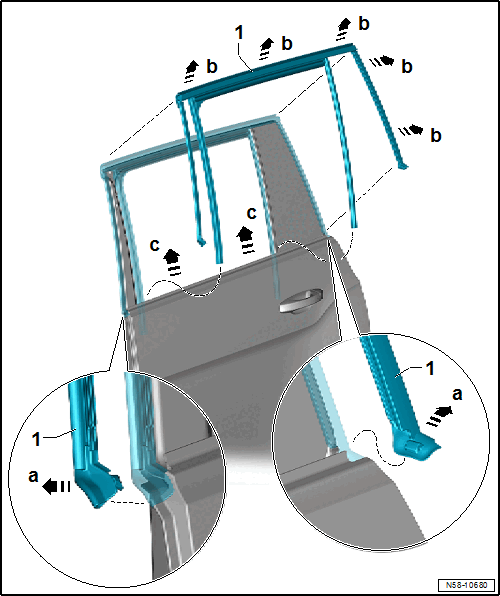

-- Loosen the window guide -1- on the lower end from the door in direction of -a arrows-.

-- Roll the window guide sealing lip -1- off the door flange from the inside.

-- Remove the window guide -1- from the door mounts in direction of -c arrows-.

-- Remove the window guide -1- from the door flange -2- all the way around in direction of -arrows b-.
