Window Guide, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Spray the window guide with soapy water to make it easier to install.

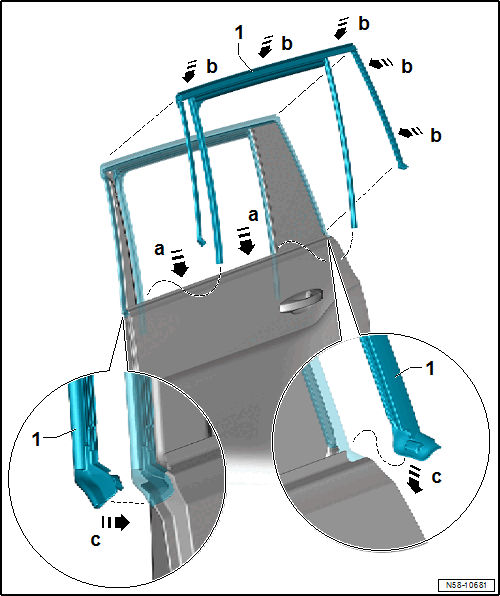

-- Push the window guide -1- into the door mounts in direction of -a arrows-.

-- Attach the window guide -1- all around on the door flange -2- in direction of -b arrows- and press it on to secure it.

-- Pull the window guide sealing lip onto the door flange from the inside.

-- Secure the window guide on the lower end of the door in direction of -c arrows-.

NOTE:

Make sure the window guide -1- fits evenly when installing it (wind noises).

Perform the rest of the installation in the reverse order of removal.
