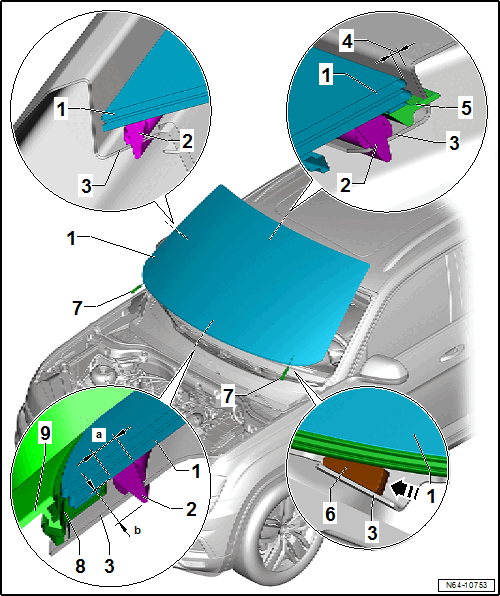

Overview - Windshield
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Windshield
- Removing and Installing. Refer to WINDSHIELD, REMOVING AND INSTALLING .
- PUR Adhesive Sealant
- Bead diameter: width -dimension a- = 7 mm, height -dimension b- = 10 mm (including pre-coating, residual material on window glass and window flange)
- Minimum Curing Time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Beginning and end of the adhesive bead at the -arrow-
- Body Flange
- Paint damage, repairing
- Seal
- Is a component of the windshield
- Gap Dimension
- Must be even
- Window Adjuster
- Left and right
- Is removed again after the adhesive hardens
- Connector
- For the windshield defogger.
- Retainer
- Is a component of the windshield
- Plenum Chamber Cover, Removing and Installing. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .
- Plenum Chamber Cover
- Removing and Installing. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .
