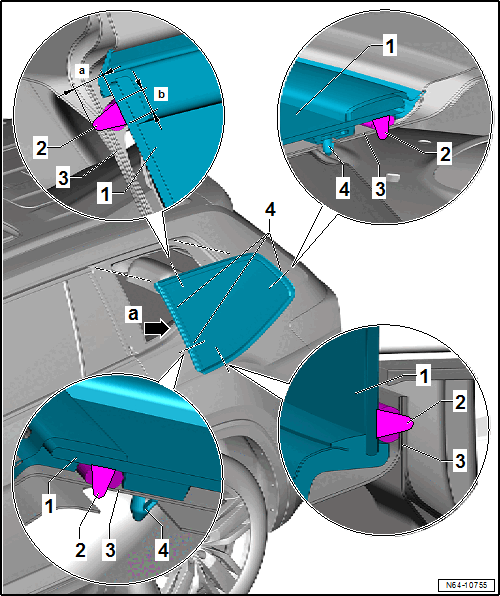

Overview - Rear Side Window
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Side Window
- Side window, removing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
- PUR Adhesive Sealant
- Bead diameter: Height = 10 mm -dimension a-, width = 6.5 mm -dimension b- (including pre-coating, residual material on window glass and window glass flange)
- Minimum Curing Time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Beginning and end of the adhesive bead at the -arrow-
- Body Flange
- Catch
- Is separated when cutting out the side window
- The side window is installed again without the hook
- Quantity: 3
