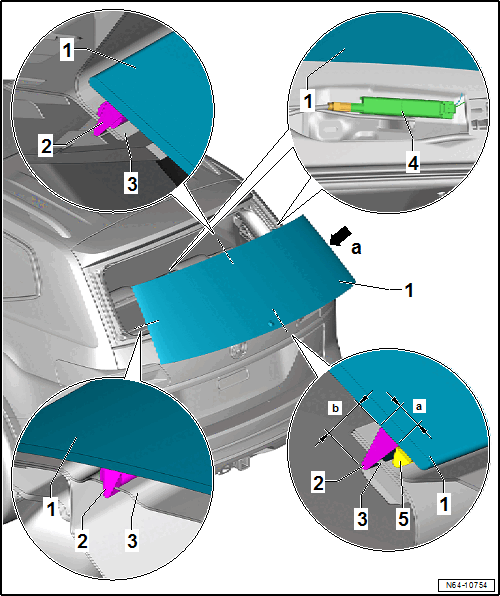

Overview - Rear Window
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Window
- Removing and Installing. Refer to REAR WINDOW, REMOVING AND INSTALLING .
- PUR Adhesive Sealant
- Bead diameter: width -dimension a- = 7 mm, height -dimension b- = 10 mm (including pre-coating, residual material on window glass and window flange)
- Minimum Curing Time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Beginning and end of the adhesive bead at the -arrow a-
- Body Flange
- Window Defroster Connector
- Left and right
- Spacer
