Window Guide, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the window guide trim molding. Refer to TRIM MOLDING, REMOVING AND INSTALLING .

-- Remove the exterior rearview mirror. Refer to EXTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING .

-- Remove the inner window shaft strip. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

-- Remove the outer window shaft strip. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

-- Remove the trim. Refer to DOOR B-PILLAR TRIM, REMOVING AND INSTALLING .

-- Roll the window guide sealing lip -1- off the door flange from the inside.

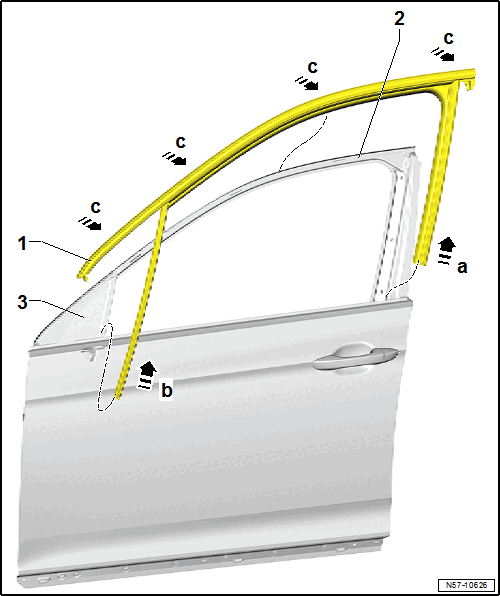

-- Remove the window guide -1- from the door mounts in direction of -a and b arrows-.

-- Remove the window guide -1- from the door flange -2- evenly all around in direction of -arrows c-.
