Window Guide, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

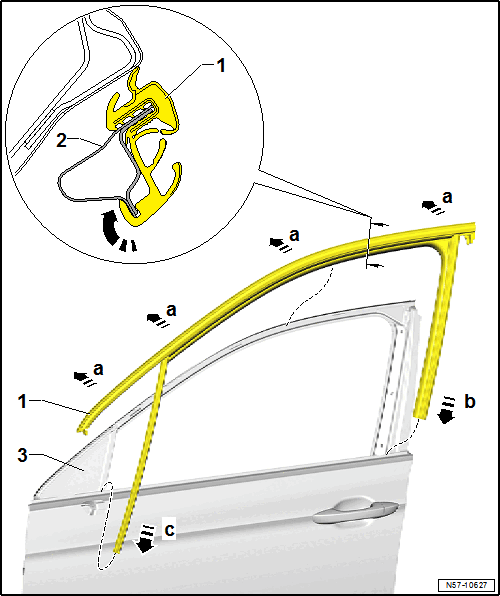

-- Spray the window guide with soapy water to make it easier to install.
-- Push the window guide -1- into the door mounts in direction of -c and b arrows-.
-- Attach the window guide -1- forward moving along the door flange in direction of -a arrows-.
-- Pull the sealing lip on the window guide onto the door flange -2- -arrow-.
NOTE:
Make sure the window guide -1- fits evenly when installing it (wind noises).
Perform the rest of the installation in the reverse order of removal.
