Outer Window Shaft Strip, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
It is permissible to use assembly aids.
Do not use any striking tools to install the outer window shaft strip.

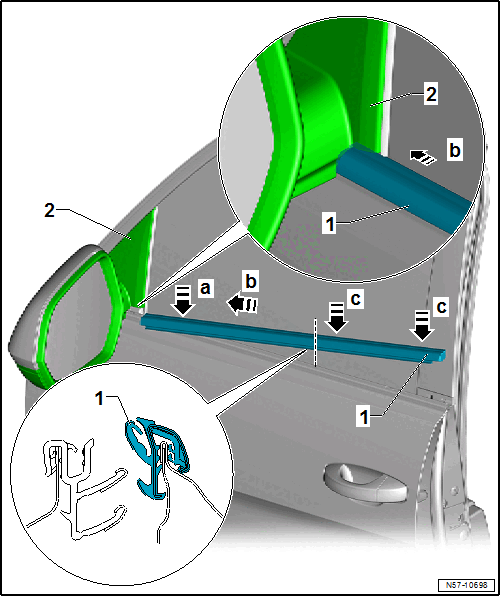

-- Push the outer window shaft strip -1- only in the front area slightly on the door flange in direction of -arrow a-.
-- Push the outer window shaft strip -1- under the exterior rearview mirror -2- in direction of -arrow b-.
-- Align the outer window shaft strip -1- on the B-pillar trim and push it evenly by hand onto the door flange in direction of -c arrows-.
