Inner Window Shaft Strip, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

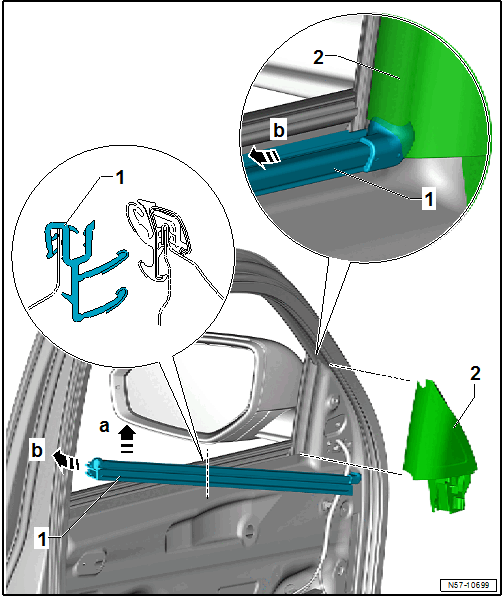

-- Pry the inner window shaft strip -1- evenly and without bending slightly from the flange in direction of -a arrows-.
-- Pull the inner window shaft strip -1- under the trim in direction of -arrow b-.
