Inner Window Shaft Strip, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|

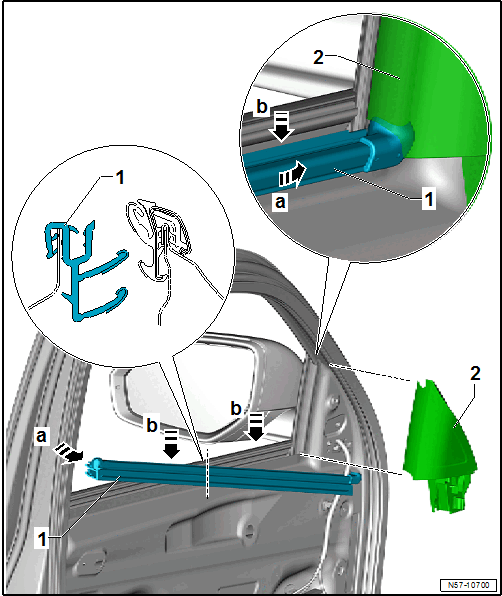

-- Guide the inner window shaft strip -1- under the trim -2- in direction of -arrow a-.
-- Determine the inner window shaft strip -1- and push in evenly by hand on the door flange.
