Ignition Key, Synchronizing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

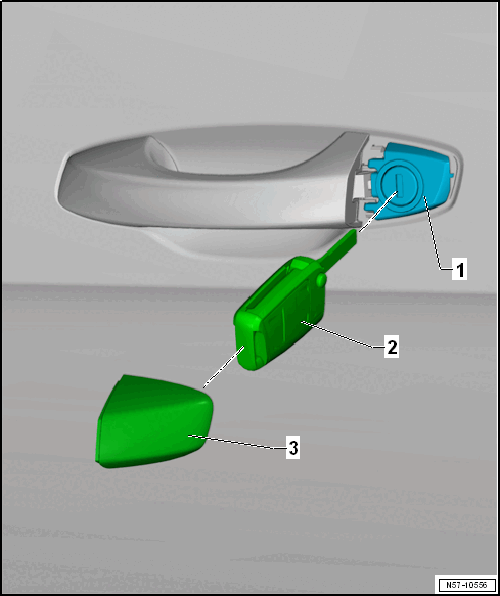

GWWN57-10556Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lock cylinder cap -3-. Refer to DOOR HANDLE CAP, REMOVING AND INSTALLING .

-- Hold the ignition key -2- at the lock cylinder -1- and push the "open" button.

-- Unlock the vehicle using the ignition key -2- within one minute via the lock cylinder -1-.
