Ignition Key Cap, Removing And Installing, Manual Ignition Lock: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Lift up the battery compartment cover. Refer to KEY BATTERY, REMOVING AND INSTALLING, MANUAL IGNITION LOCK .

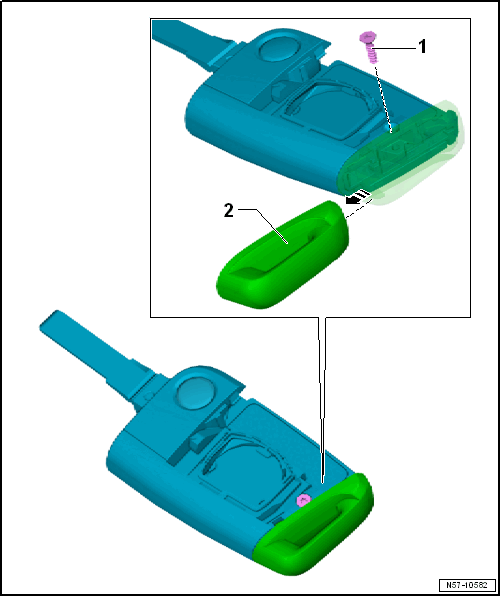

-- Remove the bolt -1-.
-- Remove the cap -2- at the side from the ignition key direction of -arrow-.
