Overview - Fender
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The illustration shows the left side. The right side is identical.

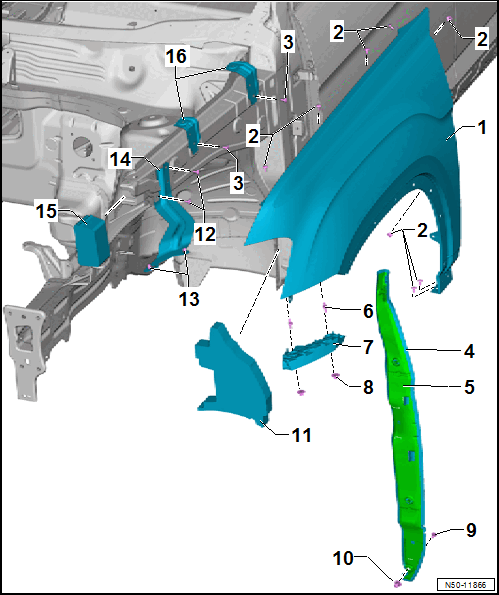

- Fender
- Removing and Installing. Refer to FENDER, REMOVING AND INSTALLING .
- Bolt
- 6.0 Nm
- Fender, quantity: 8
- Bolt
- 6.0 Nm
- One each for the deformation element
- Seal
- On the end panel
- End Panel
- Inserted between the fender and A-pillar.
- Double Bolt
- 6.0 Nm
- Fender brace, quantity: 2
- Guide
- Removing:
- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Remove the hex nut -6-.
- There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.
- Nut
- 2.0 Nm
- Quantity: 2
- Bolt
- 1.5 Nm
- Quantity: 1
- Expanding Nut
- Quantity: 1
- Insulation
- Inserted between the upper longitudinal member and the fender.
- Bolt
- 6 Nm
- Quantity: 2
- Expanding Nut
- Quantity: 2
- Fender Brace
- Upper Longitudinal Member Damper
- Inserted in the upper longitudinal member.
- Deformation Element
- Quantity: 2
