Front Axle Toe, Adjusting

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench, 40-200Nm:VAG1332A

Fig 1: Identifying Torque Wrench 1332
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench 1332 Insert - Open Ring Wrench - 24mm:VAG1332/9

Fig 2: Torque Wrench 1332 Insert - Open Ring Wrench - 24mm
Courtesy of AUDI OF AMERICA, LLC

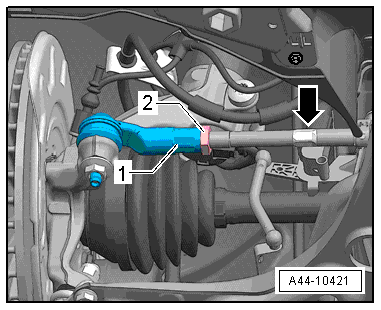

-- To loosen or tighten the lock nut -2-, counterhold at the tie rod end -1- with a suitable tool.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the lock nut -2-.

-- Adjust toe on left and right wheels at the hex fitting -arrow-.

NOTE:

Make sure that boot on steering gear is not damaged or twisted. Twisted boots wear out quickly.

Only tighten the lock nuts when the vehicle is resting on the ground - the tie rod end must be parallel to the suspension strut steering lever.

-- Tighten the lock nut -2- and check the toe-in value again.

After tightening the lock nut -2-, it is possible that the value deviates slightly.

If the measured toe nevertheless lies within the tolerance, the adjustment is correct. Refer to AXLE ALIGNMENT SPECIFIED VALUES .

Tightening Specifications

Refer to OVERVIEW - STEERING GEAR
