Height, Measuring
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

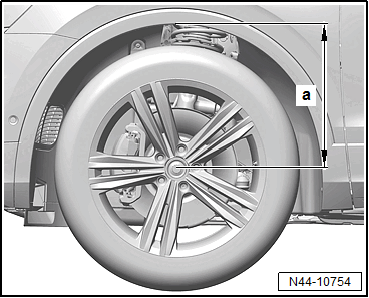

-- The dimension -a- between the center of the wheel hub and the lower edge of the wheel housing defines the height of the vehicle.
NOTE:
If adjustments were made to the suspension during the axle alignment on vehicles with ESP or ABS, a calibration of the Steering Angle Sensor -G85- must be performed using the Vehicle Diagnostic Tester.
If the rear axle setting was changed, the following driver assistance systems must be calibrated:
Lane Assist. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, CALIBRATING ,
Adaptive cruise control (ACC). Refer to ADAPTIVE CRUISE CONTROL (ACC), CALIBRATING .
