Cooling System, Checking For Leaks: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

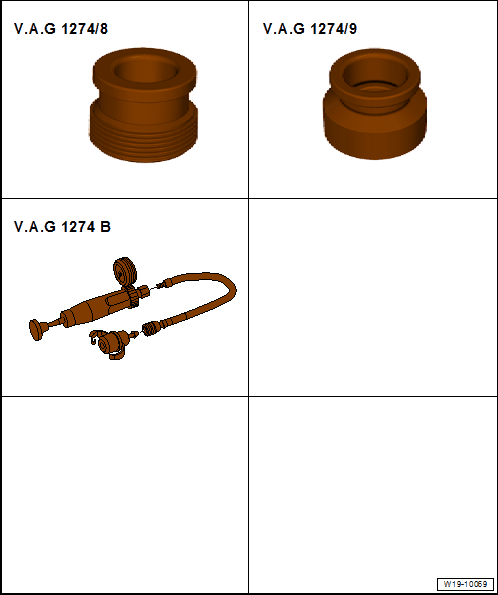

Special tools and workshop equipment required

Cooling System Tester - Adapter:V.A.G 1274/8
Cooling System Tester - Adapter:V.A.G 1274/9
Cooling System Tester:V.A.G 1274 B

NOTE:

To perform the leak test correctly, a check (self-test) of the Cooling System Tester:V.A.G 1274 B must be performed first.

Cooling System Tester:V.A.G 1274 B , Checking (Self-Test)

Fig 1: Special Tool VAG1274B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Operate the Cooling System Tester:V.A.G 1274 B multiple times.

-- Create a pressure of 3.0 bar (43.51 psi) on the Cooling System Tester.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Observe the pressure on the pressure gauge of the Cooling System Tester for 30 seconds.

If no pressure is built or the pressure decreases:

The Cooling System Tester:V.A.G 1274 B is leaking and must not be used.

Cooling System, Checking for Leaks

Fig 2: Identifying Coolant Reservoir Cap

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Engine at operating temperature.

CAUTION:

The cooling system may be under pressure. There is a risk of scalding due to hot steam and hot coolant.

Scalding the skin and other parts of the body is possible.

- Wear safety gloves.

- Wear protective eyewear.

- Reduce the pressure by covering the coolant expansion tank cap with a suitable towel and carefully opening it.

-- Open the coolant reservoir cap -arrow-.

-- Position the Cooling System Tester:V.A.G 1274 B with the Cooling System Tester - Adapter Cooling System Tester - Adapter:V.A.G 1274/8 on the coolant expansion tank.

Fig 3: Cooling System Tester V. A. G 1274 Connected To Coolant Reservoir

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Generate approximately 1.5 bar (21.76 psi) pressure with cooling system tester hand pump.

The pressure must not drop more than 0.2 bar (2.9 psi) within 10 minutes.

-- If the pressure falls more than 0.2 bar (2.9 psi), search for leaks and correct the problem.

NOTE:

The pressure decrease of 0.2 bar (2.9 psi) within 10 minutes is a condition of the cooling of the coolant. The colder the engine the more the pressure decrease. If necessary repeat the test with the engine cold.
